EVOX 5 LPM Oxygen Concentrator

Description

Evox 5 LPM Oxygen Concentrator

The Evox 5 LPM Oxygen Concentrator (EVOX-5S) is a 5-litre oxygen concentrator designed with adjustable oxygen flow, oxygen concentration monitoring, smart-touch operation and an LED display. The device provides an oxygen flow range of 0.5–5 L/min with an oxygen concentration of 93% ±3% and an oxygen output pressure of 40–70 kPa. It is ideal for COPD, respiratory conditions, and post-surgical home care.

The concentrator features a smart-touch operating panel and a 6-inch LED display that provides information including oxygen status, oxygen percentage, nebulizer status, running time, accumulated operating time and timer settings. The built-in timer can be configured from 0 to 3 hours, allowing users to set the operating duration according to their requirements.

Adjustable Oxygen Flow

The Evox 5 LPM Oxygen Concentrator supports an oxygen flow range of 0.5 to 5 L/min, with a maximum oxygen flow of 5 L/min. Its stated oxygen concentration is 93% ±3%, while the oxygen output pressure is specified at 40–70 kPa.

Smart Touch & LED Display

The EVOX-5S is equipped with a smart-touch operating panel and LED display system. The display provides information about oxygen operation, nebulizer operation, oxygen percentage, running time, accumulated time and timer settings.

Built-in Nebulizer Function

The concentrator also includes a nebulizer system with an individual nebulizer outlet and push-button operation. The brochure specifies a nebulizing particle size of 3.6 μm ±25% and includes a nebulizer kit with mask.

Timer Function

The built-in timer can be set between 0 and 3 hours. The operating system allows timer adjustment, using the touch controls, with 15- and 30-minute increments or reductions indicated in the product specifications.

Safety & Protection Features

The Evox 5 LPM Oxygen Concentrator incorporates several alarm and protection functions. These include a low-oxygen alarm, oxygen pressure protection alarm, pressure fault alarm, power alarm, compressor fault alarm and overheating protection.

Compact Design

The EVOX-5S has a machine body size of 380 × 270 × 580 mm and a net weight of 15.6 kg. The brochure specifies a gross weight of 19 kg and lists ABS and glass as the body materials.

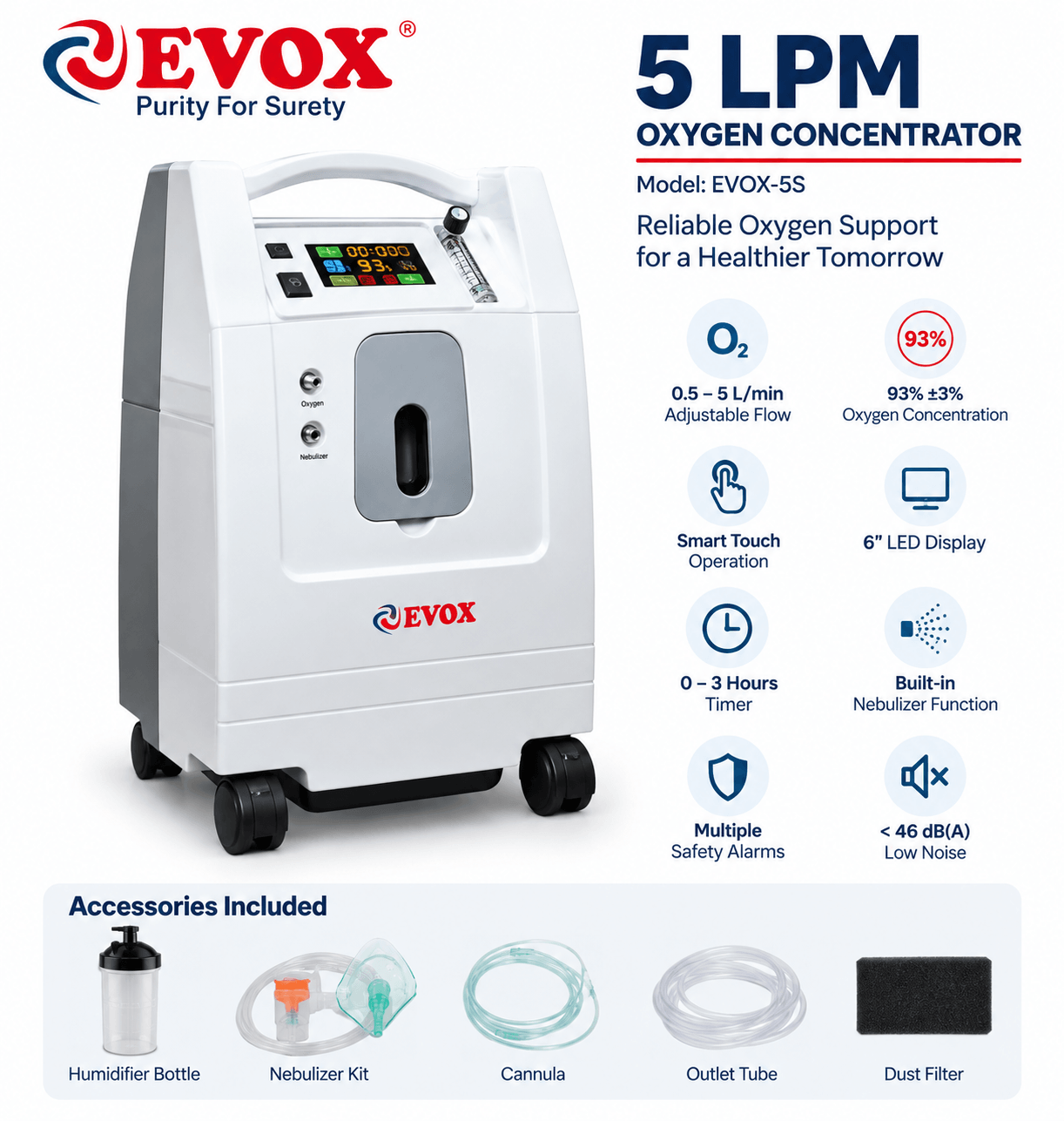

Accessories Included

The Evox 5 LPM Oxygen Concentrator comes with a humidifier bottle, nebulizer kit, cannula, outlet tube and dust filter. These accessories are listed in the supplied product brochure.

Product Highlights

• 5 L/min maximum oxygen flow
• 0.5–5 L/min oxygen flow range
• 93% ±3% oxygen concentration
• 40–70 kPa oxygen output pressure
• Smart-touch operating panel
• 6-inch LED display
• 0–3 hour timer
• Built-in nebulizer function
• Oxygen percentage display
• Accumulated operating-hours display
• Multiple alarm and protection functions
• 350W power consumption
• Noise level below 46 dB(A)
• 15.6 kg net weight
• Humidifier bottle, nebulizer kit, cannula, outlet tube and dust filter included

Specifications Of Evox 5 LPM Oxygen Concentrator

• Brand: EVOX
• Model: EVOX-5S
• Oxygen Flow Range: 0.5–5 L/min
• Oxygen Output Pressure: 40–70 kPa
• Dimensions: 380 × 270 × 580 mm
• Net Weight: 15.6 kg
• Capacity: 5 LPM
• Oxygen Purity: 93% ±3%
• Power Consumption: 350W
• Noise Level: Below 46 dB(A)
• Warranty: 3 Years
• Suitable For: Home oxygen support, post-surgery recovery, COPD and other respiratory conditions (on medical advice)

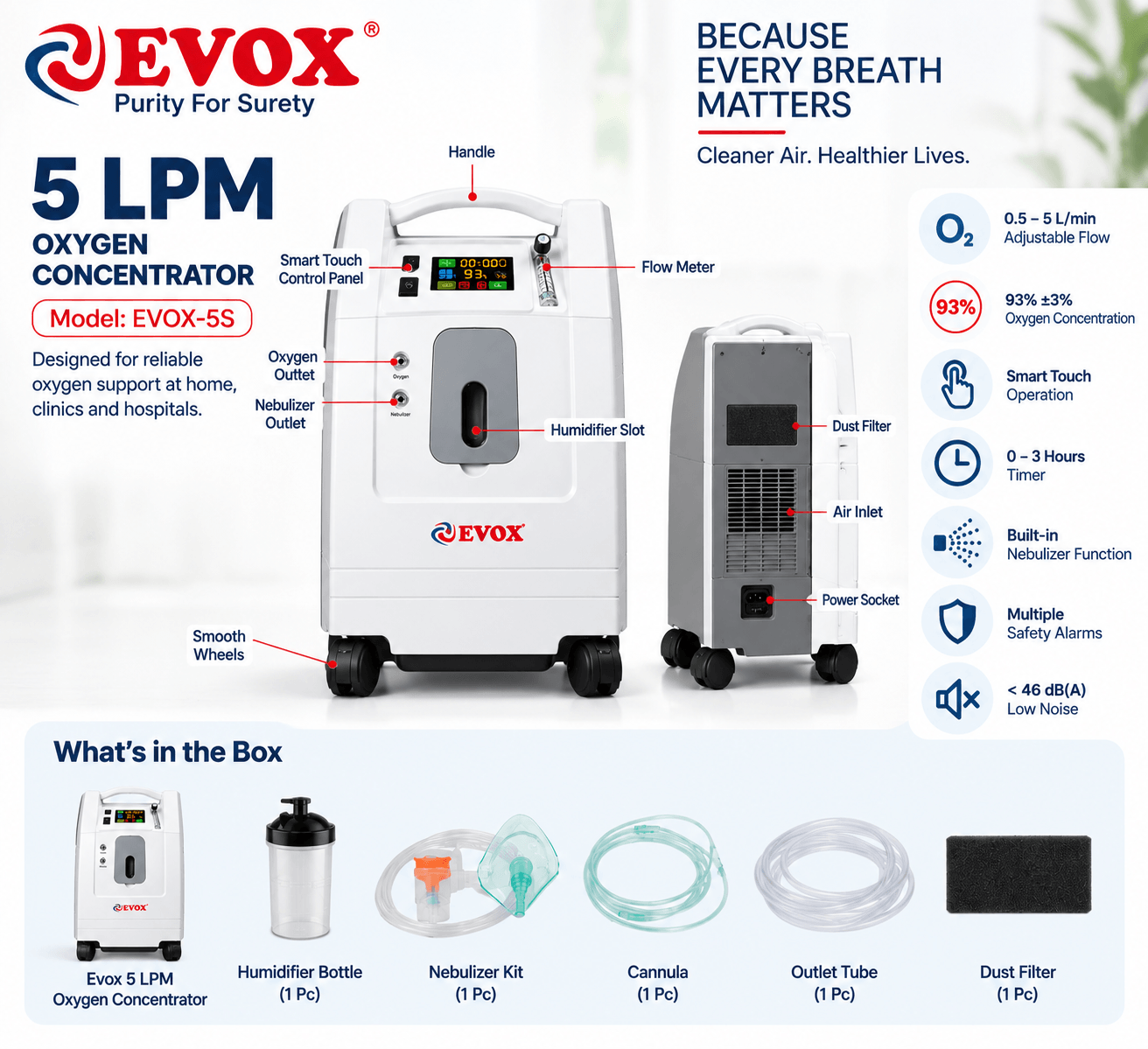

What’s in the Box

• 1x EVOX 5 LPM Oxygen Concentrator
• 1x Humidifier bottle
• 1x Nebulizer kit with mask
• 1x Nasal cannula
• 1x Outlet tube
• 1x Dust filter
• 1x Power cord
• 1x User manual

Looking for a temporary solution? Explore our Oxygen Concentrator Rental Service.

Important Note

The Evox 5 LPM Oxygen Concentrator is a medical device. Use the device according to the manufacturer’s instructions and the guidance of a qualified healthcare professional. Oxygen flow settings should not be changed without appropriate medical advice.
